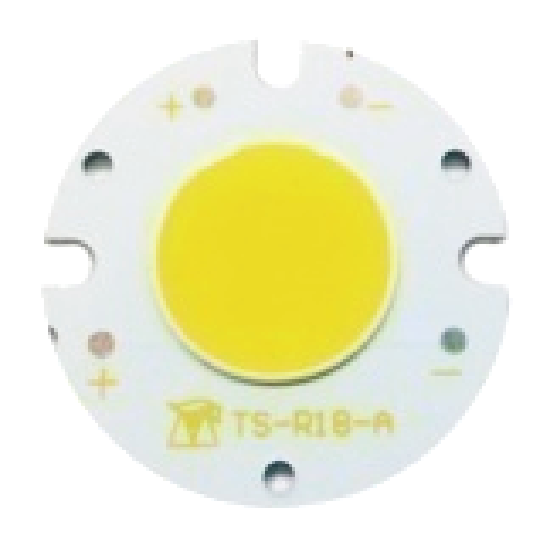

TS-R18

* High CRI design, suitable for commercial lighting.
* Integrated light point source, simple light distribution, no overlap image.
* Heat radiation directly low thermal resistance, meet Zhaga universal design.
* Simple lamps assembly process, saving lamps production cost.
* No need to reflux welding, improve LED quality.

Category Part Number CCT
((K)
Forward Voltage(V) Forward Current(mA) Luminous Flux(lm) Max Current
(mA)
CRI
(Ra)
PDF
5W TS-R18-5W15HX 2700k 14.5~16.5 350 550 600 80 ATS-R18
5W TS-R18-5D15HX 2700k 14.5~16.5 350 608 600 80 ATS-R18
5W TS-R18-5C15HX 2700k 14.5~16.5 350 629 600 80 ATS-R18
7W TS-R18-7W21HX 2700k 20.3~23.1 350 770 600 80 ATS-R18
7W TS-R18-7D21HX 2700k 20.3~23.1 350 860 600 80 ATS-R18
7W TS-R18-7C21HX 2700k 20.3~23.1 350 890 600 80 ATS-R18
