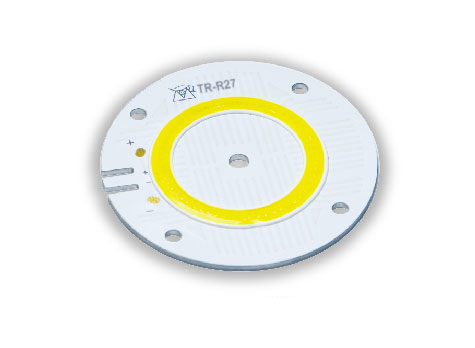

TR-R27

* High CRI design, suitable for commercial lighting.
* Integrated light point source, simple light distribution, no overlap image.
* Heat radiation directly low thermal resistance, meet Zhaga universal design.
* Simple lamps assembly process, saving lamps production cost.
* No need to reflux welding, improve LED quality.

Category Part Number CCT
((K)
Forward Voltage(V) Forward Current(mA) Luminous Flux(lm) Max Current
(mA)
CRI
(Ra)
PDF
4W ATR-R27-4C90HX 2700k 90 45 480 60 80 ATR-R27-4W
4W ATR-R27-4D90HX 2700k 90 45 452 60 80 ATR-R27-4W
4W ATR-R27-4W90HX 2700k 90 45 420 60 80 ATR-R27-4W
3W TR-R27-3W180HX 2700k 180 20 360 40 80 ATR-R27-3W180HX
3W TR-R27-3D180HX 5000 180 20 400 40 80 ATR-R27-3D180HX
3W TR-R27-3C180HX 6500 180 20 430 40 80 ATR-R27-3C180HX
