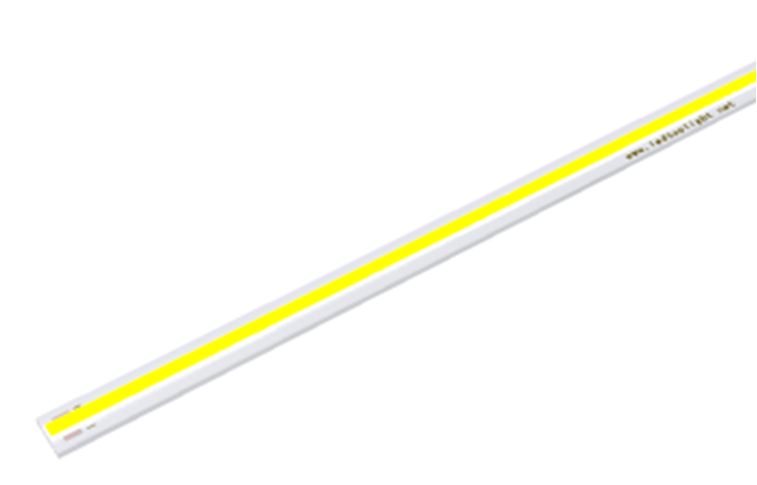

TL-B36

* High CRI design, suitable for commercial lighting.
* Integrated light point source, simple light distribution, no overlap image.
* Heat radiation directly low thermal resistance, meet Zhaga universal design.
* Simple lamps assembly process, saving lamps production cost.
* No need to reflux welding, improve LED quality.

Category Part Number CCT
((K)
Forward Voltage(V) Forward Current(mA) Luminous Flux(lm) Max Current
(mA)
CRI
(Ra)
PDF
4W TL-B36-4W18HX 2700k 17.4~19.8 210 403 360 80 ATL-B36
4W TL-B36-4D18HX 2700k 17.4~19.8 210 450 360 80 ATL-B36
4W TL-B36-4C18HX 2700k 17.4~19.8 210 480 360 80 ATL-B36
4W TL-B36-4W36HX 2700k 52.2~59.4 80 430 120 80 ATL-B36
4W TL-B36-4D36HX 2700k 52.2~59.4 80 460 120 80 ATL-B36
4W TL-B36-4C36HX 2700k 52.2~59.4 80 490 120 80 ATL-B36
