Shanghai TopLitE Technology Co.,LTD.



posotion:首页 - Product - 高压 COB - TL-B160

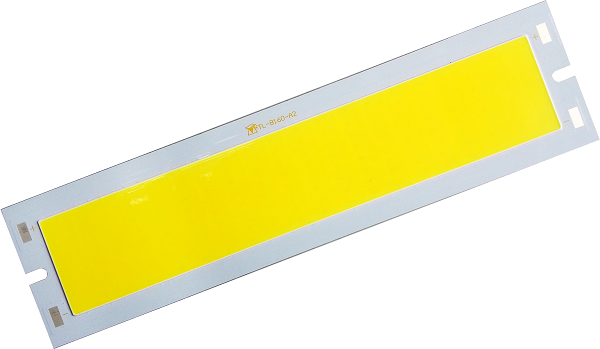

TL-B160

* High CRI design, suitable for commercial lighting.
* Integrated light point source, simple light distribution, no overlap image.
* Heat radiation directly low thermal resistance, meet Zhaga universal design.
* Simple lamps assembly process, saving lamps production cost.
* No need to reflux welding, improve LED quality.

Power
(W)
Part Number CCT
(K)
Forward Voltage(V) Forward Current(mA) Luminous Flux(lm) Luminous efficay
(lm/W)
CRI
(Ra)
PDF
30W TL-B160-30D30HC 2700k 30 1000 3240 1600 80 ATL-B160-30D30HC
30W TL-B160-30W30HC 2700k 30 1000 3000 1600 80 ATL-B160-30W30HC
20W TL-B160-20D30HC 2700k 30 680 2160 1200 80 ATL-B160-20D30HC
20W ATL-B160-20W30HC 2700k 30 680 2040 1200 80 ATL-B160-20W30HC
